Products Description

Hefei Jingchi New Energy Co., Ltd.

JC Power is an international high-tech growth enterprise, specializing in the R & D and sales of solar panels, solar inverters,controllers and pv solar power generation and battery storage systems, and providing one-stop solutions for pv products.

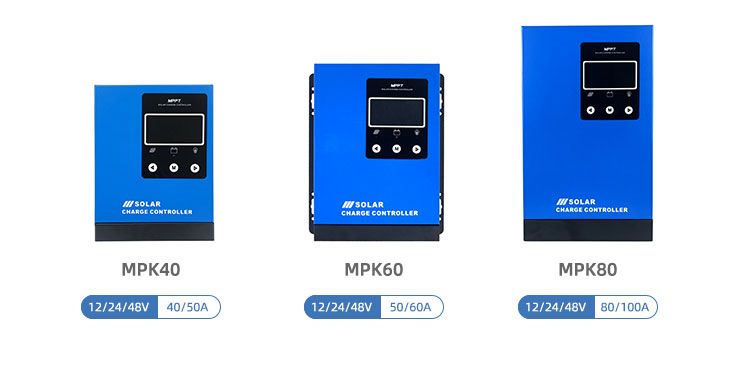

Model

MPK2-40

MPK2-60

MPK2-80

MPK2-100

INPUT

Maximum PV open circuit voltage

150V (at the lowest temperature)

138V (at standard temperature of 25℃)

Minimum PV voltage

20V/40V/60V/80V

Rated charge current

30A

40A

50A

60A

60A

80A

80A

100A

OUTPUT

System voltage

12V/24/36/48V AUTO

Rated discharge current

15A

20A

25A

30A

40A

40A

50A

50A

Own consumption

≤35mA

MPPT highest accuracy

99%

Maximum charging efficiency

97%

Charging control mode

Multi-stage (MPPT, Absorption, Float, Equalization, CV)

Float charge

13.8V/27.6V/41.4V/55.2V

Absorption charge

14.4V/28.8V/43.2V/57.6V

Equalization charge

14.6V/29.2V/43.8V/58.4V

Load disconnection (LVD)

10.8V/21.6V/32.4V/43.2V

Load reconnection (LVR)

12.6V/25.2V/37.8V/50.4V

Load control mode

Normal, light control, light and timing control, timing control, reverse light control

Light control point voltage

5V/10V/15V/20V

Battery type

GEL, SLD, FLD AND USR (default), LifePO4, Lithium batteries customization

APPEARANCE & ENVIRONMENT

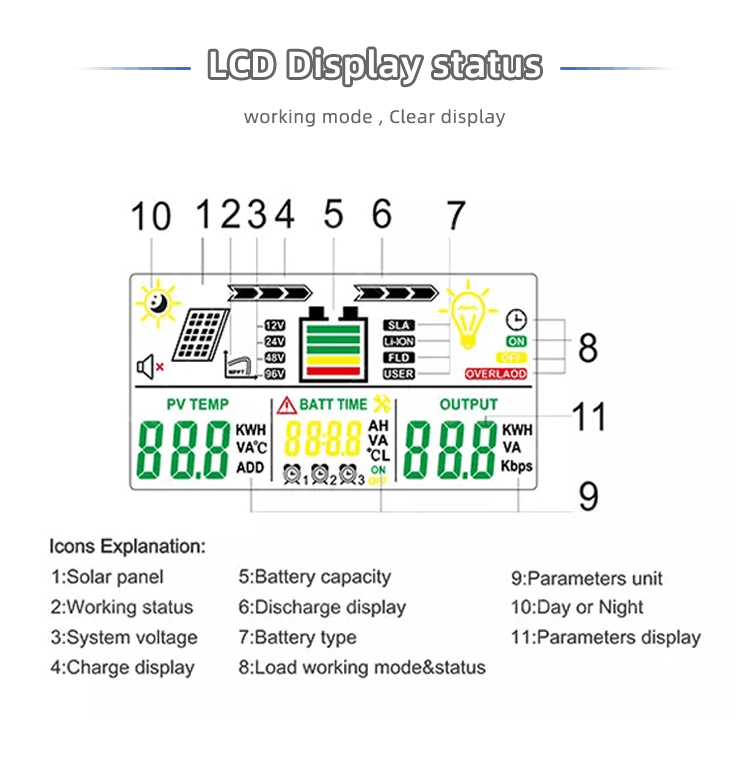

Human interface

LCD with backlight, 3 buttons

Cooling mode

AL alloy heat sink and cooling fan

Wiring

High current copper terminal ≤25mm2 (3AWG)

Temperature probe

Line length 3m

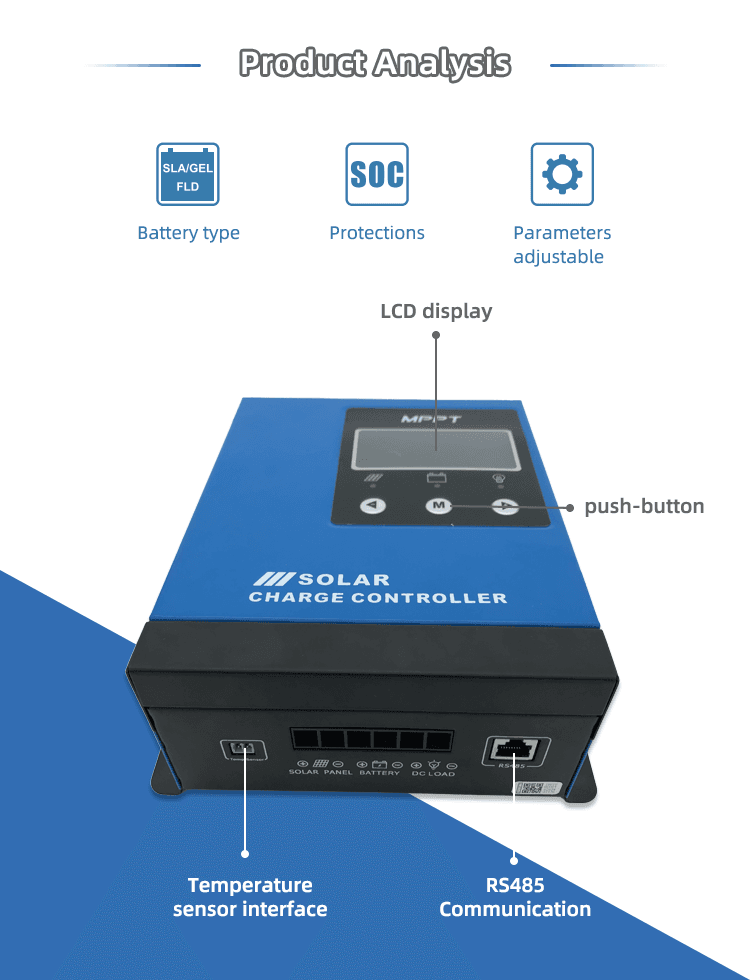

Communication mode

RS485, RJ45 port

Working temperature range

-20 ~ +55 ℃

Storage temperature range

-30 ~ +80 ℃

Humidity

10% - 90% no condendation

Product Size

250*190*95mm

280*210*100mm

350*230*112mm

350*230*112mm

Product Weight

2.3kg

3.5kg

4.6kg

4.6kg
