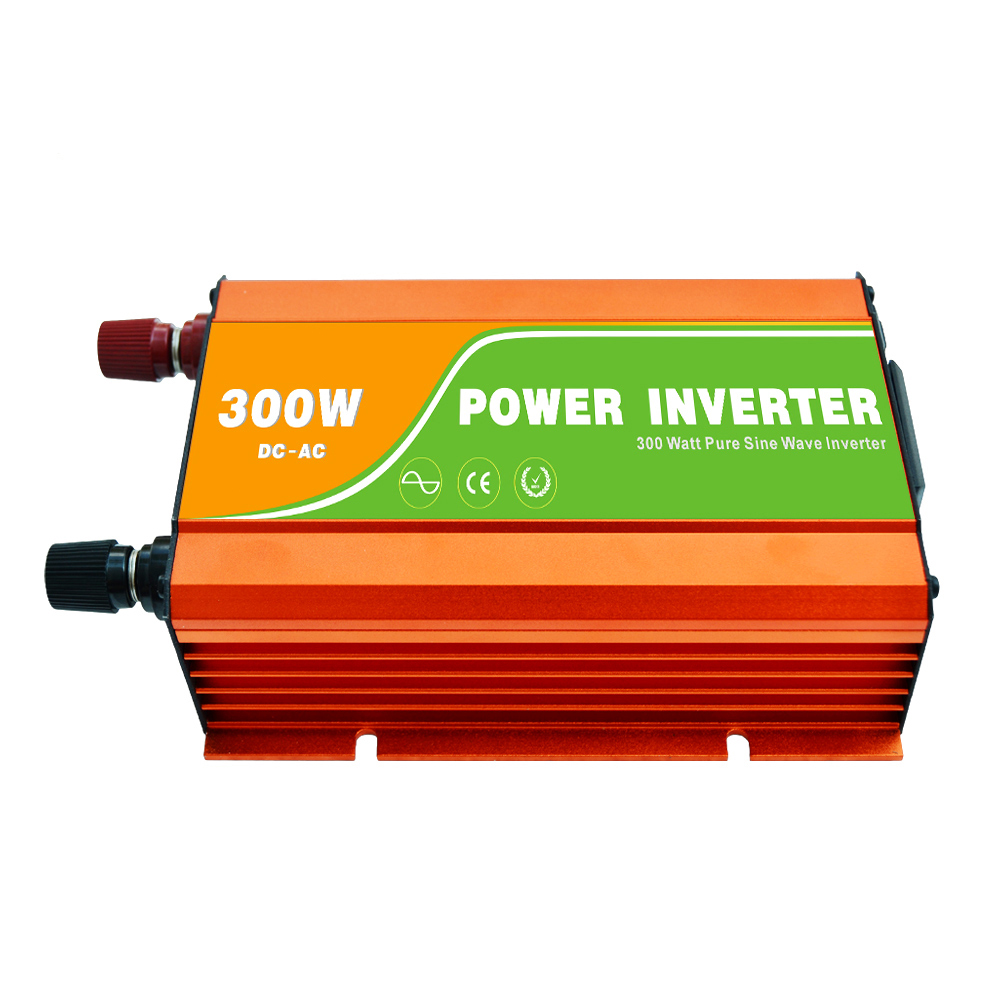

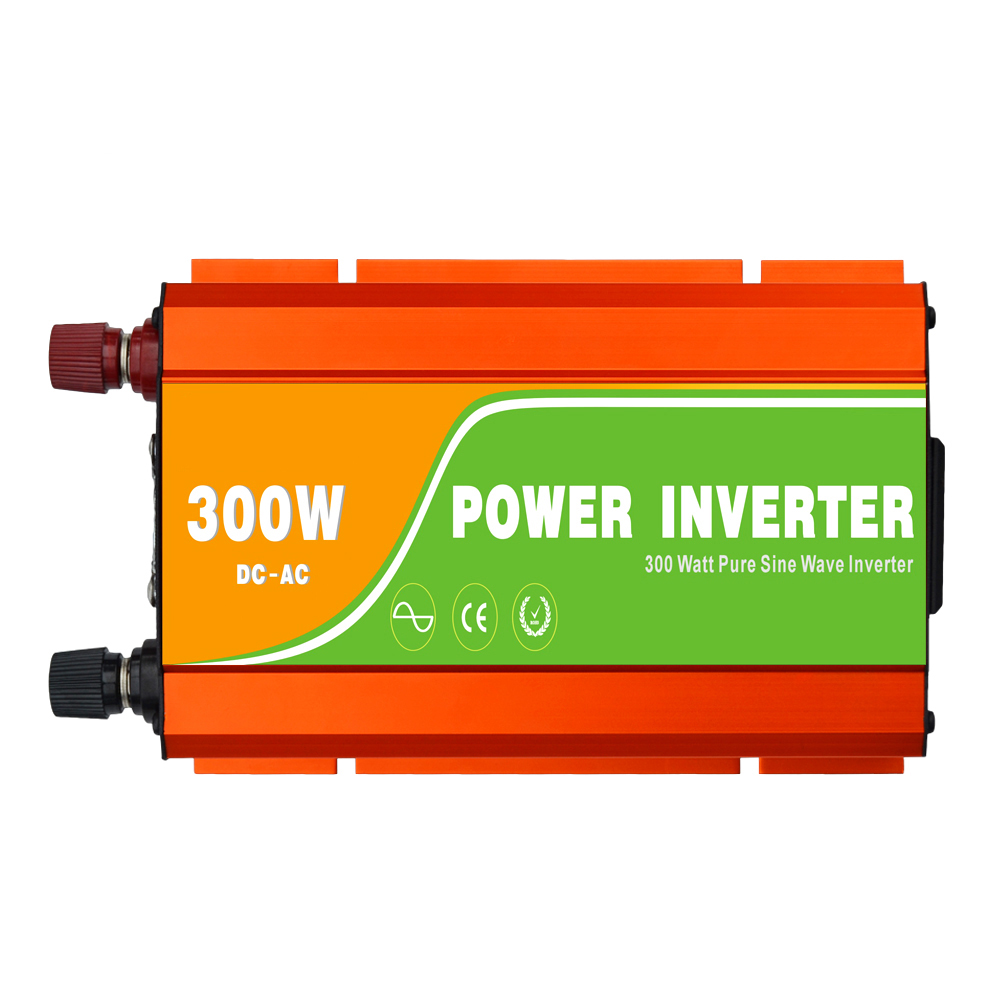

Off grid 300w pure sine wave power inverter

Off grid 300w pure sine wave power inverter

Product characteristics

300w power inverter 12v 24v DC to 110v 220v AC pure sine wave inverter car inverter

Pure sine wave inverter

·Small, light and artistic, benefited from adopting the SMD pastern technology.

·Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

  • Item No.:

    JN-H 300W

  • Market price:

    $12v 24v 48v

  • Product origin:

    China

  • Color:

    ORANGE

  • Product weight:

    1.8kg

  • Brand Name:

    JNGE

  • Application:

    Off grid inverter

  • Battery Voltage:

    12V 24V 48V

  • Output Voltage:

    100/110/120/127/220/240v optional

  • Display:

    LED

  • Rated power:

    300W

  • Output wave form:

    Pure sine wave


What is an off grid pure sine wave inverter?


It is a device which converts battery output (DC, or direct current) into 110 or 230V AC mains electricity (alternating current). 110 or 230V AC is the type of electricity supplied by utility companies to run standard domestic appliances such as a TV, fridge, radio, lights or to charge a laptop / mobile phone etc. If you have a battery, connecting a power inverter will enable you to power household appliances in areas with no access to mains electricity; such as in a motorhome, caravan, boat, farm or any other remote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.

This is a 12V 24V 48V 300W pure sine wave power inverter which can generate 300W of continuous power and up to 600W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).

This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:
It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters)
It is more efficient compared to modified sine wave inverters.

This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads.

Parameter

OUTPUTOUTPUT VOLT100/110/120/220/230/240VAC
CONTINUOUS POWER300W
SURGE POWER600W
WAVEFORMPURE SINE WAVE
FREQUENCY50Hz/60Hz
AC REGULATIONLOW & HIGH 10%
Non-load  Consumption<7W
EFFICEINCY>90%
INPUTUSB OUTPUTt5V
DC VOLTAGELED DISPLAY POWER & FAIL STATUS
INPUT RANGE10-15VDC     21-30V     40-60V     50-75V      60-90V
PROTECTIONWORKING INPUT12VDC          24VDC     48VDC      60VDC      72VDC
FUSE35A                20A          15A             35A           35A
Low battery alarm10.5+0.3V      21+0.5V   42+0.5V    52.5+0.3V  63+0.3V
Low battery shut down10+0.5V         20+0.5V   40+0.5V    50+0.5V     60+0.5V
Over voltage shut down15.5+0.5V      30.5+0.5V 60+0.5V   77.5+0.5V  93+0.5V
Over load shut down360W OVER 10 SECOND
Over heating shut down>75
Over Thermal shut down the output
Working TemperatureBETWEEN -10 and +50
soft start
OTHERDIMENSION(L*W*H) 200*127*54mm
INNER BOX DIMENSION 295*178*115mm
CARTON DIMENSION 500*250*360mm
NET WEIGHT0.8±0.1KG
GROSS WEIGHT10±1KG
PACKING10PCS/CTN



Product  Details:

300w inverter
