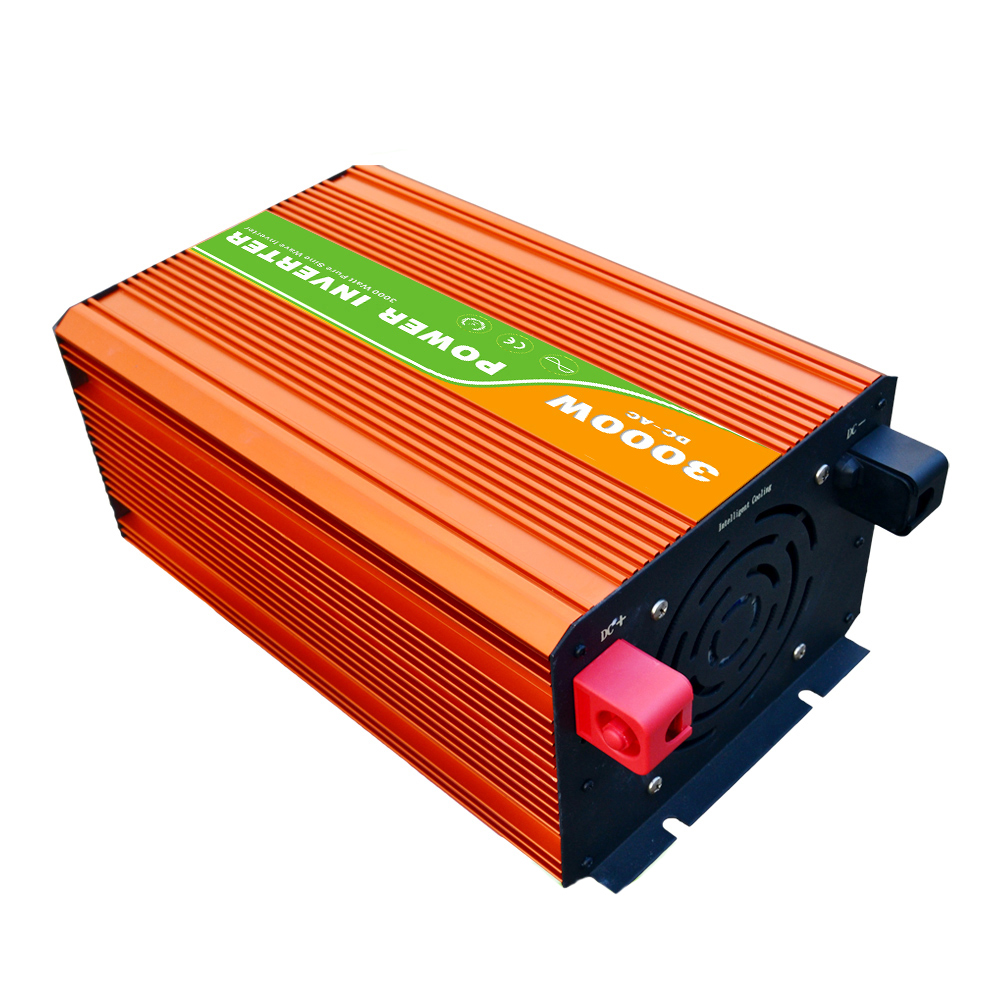

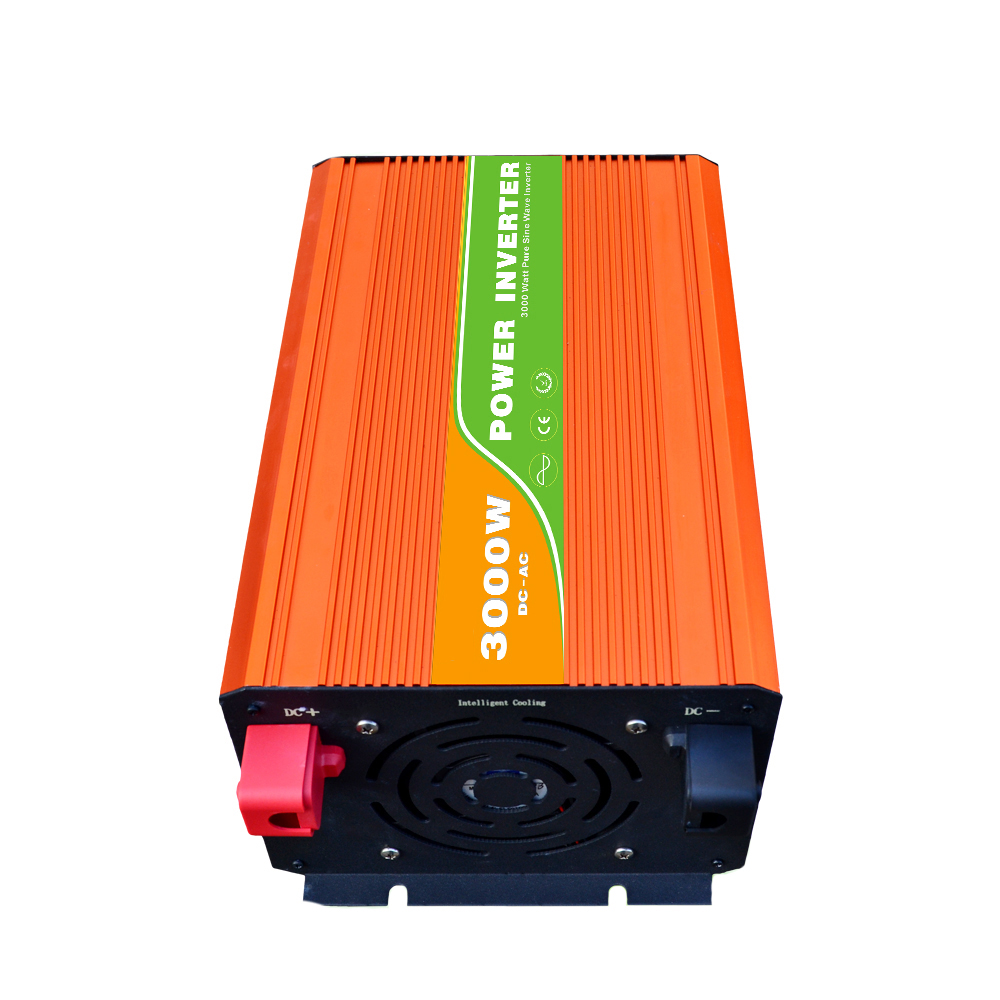

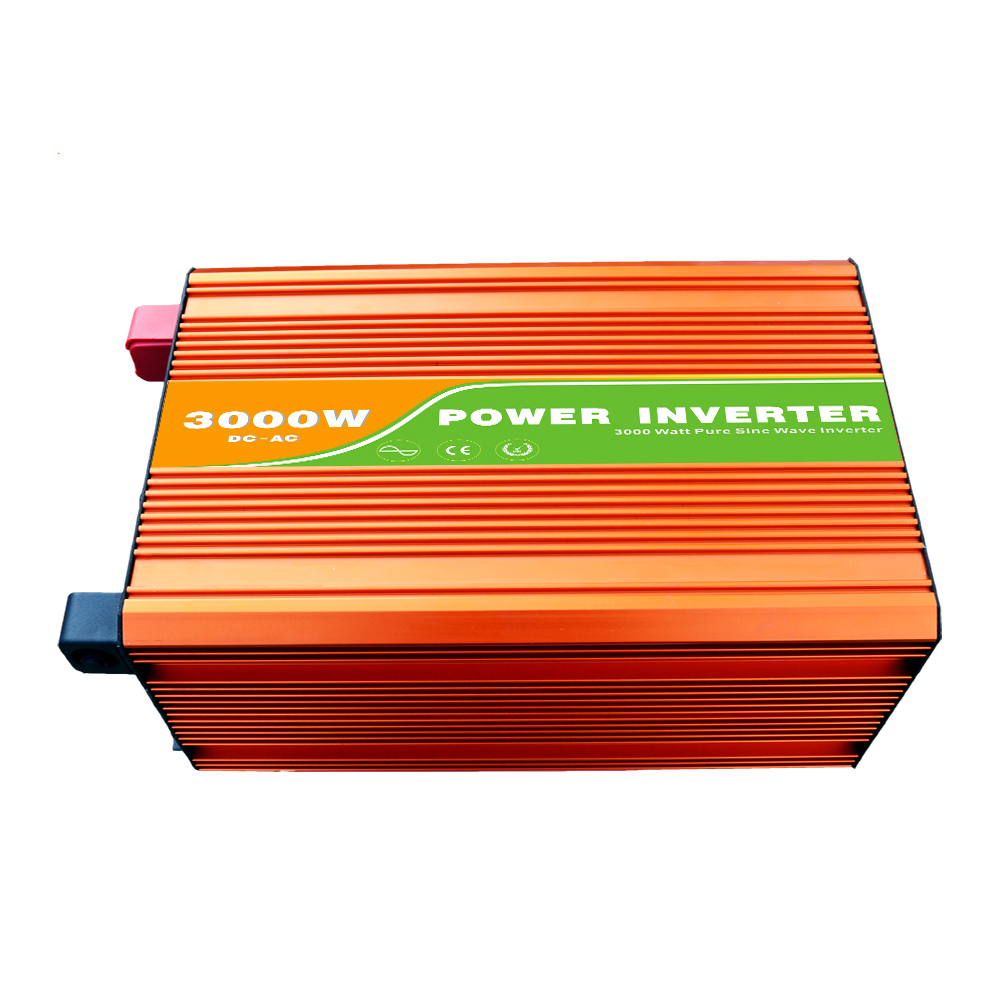

3000 watt pure sine wave inverter 12v 24v 48v 96v DC to 100v -240v AC pure sine wave inverter

3000 watt pure sine wave inverter 12v 24v 48v 96v DC to 100v -240v AC pure sine wave inverter

Product characteristics

Low interference technology
Soft start function and Perfect protections
Same size, light weight, faint noise ,free maintenance
Pure sine wave and full power output

  • Item No.:

    JN-H 3000W

  • Brand Name:

    JNGE

  • Application:

    Off grid solar power system

  • Battery Voltage:

    12/24/48/96v

  • Output Voltage:

    100/110/120/127/220/240v optional

  • Display:

    LED

  • Rated power:

    3000w

  • Output wave form:

    Pure sine wave


This is a 12V 24V 48V 96V 3000W pure sine wave power inverter which can generate 3000W of continuous power and up to 6000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) .It is more efficient compared to modified sine wave inverters.


This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads


Product Parameters:

OUTPUTOUTPUT VOLT100/110/120/220/230/240VAC
CONTINUOUS POWER3000W
SURGE POWER6000W
WAVEFORMPURE SINE WAVE
FREQUENCY50Hz/60Hz
AC REGULATIONLOW & HIGH 10%
Non-load  Consumption<23W
EFFICEINCY>90%
INPUTUSB OUTPUT5V
DC VOLTAGELED DISPLAY POWER & FAIL STATUS
INPUT RANGE10-15VDC         21-30VDC          40-60VDC
PROTECTIONWORKING INPUT12VDC              24VDC              48VDC
FUSE35A                  20A                  15A
Low battery alarm10.5±0.5V          21±0.5V           42±0.5V
Low battery shut down20±0.5V            20±0.5V             40±0.5V
Over voltage shut down15.5±0.5V          30.5±0.5V          60±0.5V
Over load shut down3600W over 10 seconds
Over heating shut down>75
Over Thermal shut down the output
Working TemperatureBETWEEN -10 and +50
soft start
OTHERDIMENSION(L*W*H) 390*216*155mm
INNER BOX DIMENSION 423*304*250mm
CARTON DIMENSION 460*325*260mm
NET WEIGHT8.9±0.2KG
GROSS WEIGHT10.3±1KG
PACKING1PC/CTN
