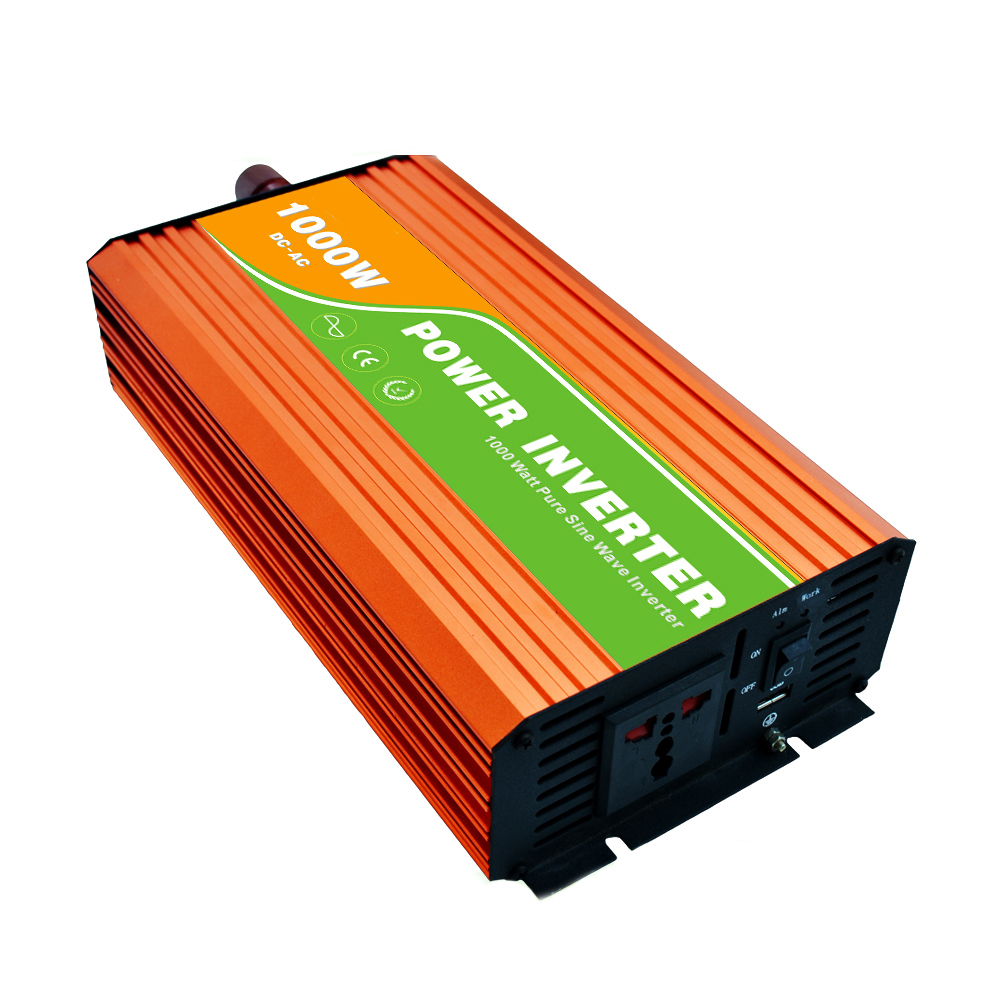

Off grid 1000w pure sine wave power inverter

Off grid 1000w pure sine wave power inverter

Product characteristics

DC input 12V 24V 48V

AC ouput 100-240V/50Hz or 60HZ inverter

Conversion efficiency up to 90%

Low interference technology

Soft start function

Same size, light weight, faint noise ,free maintenance

High converting  efficiency

Under voltage shutdown protection

Over voltage shutdown protection

Latest soft-start technique

Overload protection

Overheat protection

Alloy aluminium case

  • Item No.:

    JN-H 1000W

  • Brand Name:

    JNGE

  • Application:

    Off grid solar system

  • Battery Voltage:

    12/24/48/96v optional

  • Output Voltage:

    100/110/120/127/220/240v optional

  • Display:

    LED

  • Rated power:

    1000w

  • Output wave form:

    pure sine wave

This is a 12V 24V 48V 500W pure sine wave power inverter which can generate 500W of continuous power and up to 1000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).


This is a pure sine wave type of inverter, which means that the 110 or 230V AC output harmonically follows a smooth sine wave and is almost identical to normal mains electricity. Pure sine wave output is far superior than square sine wave or modified sine wave output for running appliances. This is because:


It is suitable for a broader range of appliances (for example, appliances with electric motors can not be powered by modified sine wave inverters) It is more efficient compared to modified sine wave inverters.
This product comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.

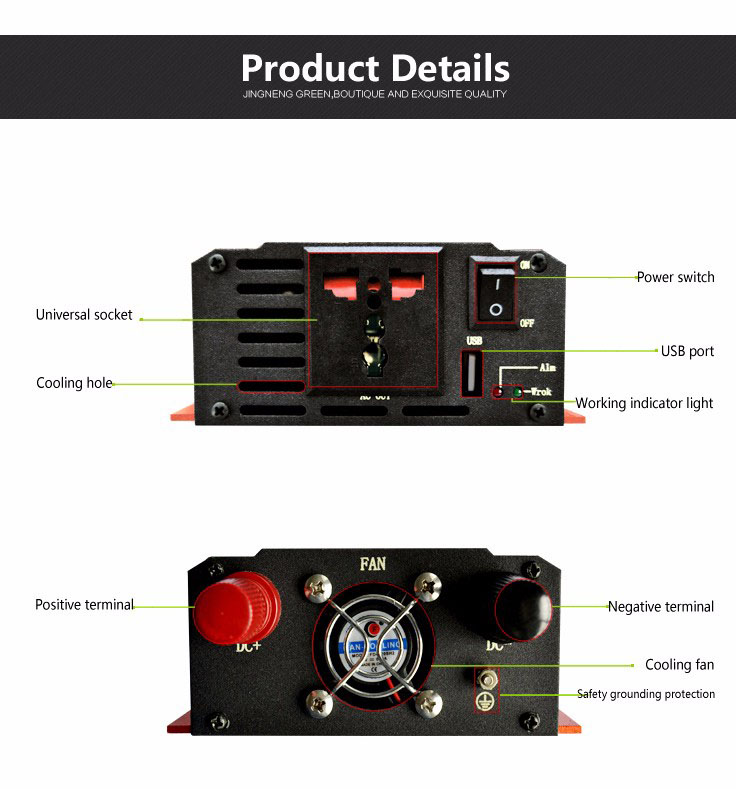

The inverter also features a powerful USB port for faster charging of mobile phones, MP3 players and others mobile loads


Product parameters:


OUTPUTOUTPUT VOLT100/110/120/220/230/240VAC
CONTINUOUS POWER500W
SURGE POWER1000W
WAVEFORMPURE SINE WAVE
FREQUENCY50Hz/60Hz
AC REGULATIONLOW & HIGH 10%
   Non-load  Consumption<7W
EFFICEINCY>90%
INPUTUSB OUTPUTt5V
DC VOLTAGELED DISPLAY POWER & FAIL STATUS
INPUT RANGE10-15VDC     21-30V      40-60V     50-75V      60-90V
PROTECTIONWORKING INPUT12VDC          24VDC      48VDC     60VDC      72VDC
FUSE35A                20A            15A          35A           35A
Low battery alarm10.5+0.3V    21+0.5V      42+0.5V   52.5+0.3V  63+0.3V
Low battery shut down10+0.5V       20+0.5V   40+0.5V     50+0.5V      60+0.5V
Over voltage shut down15.5+0.5V    30.5+0.5v  60+0.5v    77.5+0.5V
Over load shut down600W OVER 10 SECOND
Over heating shut down>75
Over Thermal shut down the output
Working TemperatureBETWEEN -10 and +50
soft start
OTHERDIMENSION(L*W*H) 235*146*66mm
INNER BOX DIMENSION 300*180*115mm
CARTON DIMENSION 580*305*380mm
NET WEIGHT1.85±0.2KG
GROSS WEIGHT20±1KG
PACKING10PCS/CTN
