Products Description
PRODUCT CHARACTERISTICS
1. It supports two working modes: battery mode and no battery mode; 2. In the battery free mode, solar energy is preferred, and mains power is used as a supplement to supply power to the load; 3. With anti surge and anti reverse protection at the battery end, it perfectly matches the lithium battery application system; 4. Three charging modes are available: solar energy only, solar energy is preferred, and solar energy is complementary to mains power; 5. Two AC output modes are available: mains power priority and inverter priority 6. Efficient MPPT technology, with tracking efficiency no less than 97%; 7. PFC technology is used to realize high power factor AC-DC charging and reduce the occupation of power grid capacity; 8. SPWM technology, pure sine wave output; 9. The total charging and discharging limit current of the battery can be set, which is applicable to the battery with current limit The occasion of making; 10. The mains charging current can be set, and the usage of mains charging can be flexibly configured according to the demand; 11. Self learning SOC display function; 12、Rich user setting interface, real-time monitoring system parameters; 13. Isolate RS485 communication interface, which can match GPRS, WIFI and other modules to achieve remote monitoring; 14. With lithium battery BMS Link communication interface, and optional BMS Lin k communication protocol conversion mode Block to realize charging and discharging control based on BMS.
Product Details
Model
SY2.0K
SY3.2K
SY-3.5K
SY-5.5K
SY-3.6K
SY-4.2K
SY-6.2K
SY-8.2K
SY-10.2K
Rate power
1600va/2000w
3200va/3000w
3500va/3500w
5500va/5500w
3600va/3600w
4200va/4200w
6200va/6200w
8200va/8200w
10.2Va/10KW
AC INPUT
Voltage
230Vac
Selectable Voltage Range
170-280Vac (For Personal Computers)
90-280Vac(For Home Appliances)
Frequency Range
50 Hz/60Hz(Auto sensing)
AC OUTPUT
AC Voltage Regulation
230VAC15%
Surge Power
4000Va
6400Va
7000Va
11000Va
7200Va
8400Va
12400Va
16400W
20400W
Efficiency(Peak)PV to INV
98%
Efficiency(Peak)Battery to INV
94%
Transfer Time
10 ms (For Personal Computers);
20 ms (For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage
12V
24V
48V
Floating Charge Voltage
13.5V
27V
54V
Overcharge Protection
16V
33V
63V
SOLAR CHARGER
Maximum PV Array Power
2000W
3000W
5000W
6000W
6200W
6200W
6500W
8200W
10200W
MPPT Range @ Operating Voltage
90~430VDC
Maximum PV Array Open Circuit
450VDC
Maximum Charging Current
80A
80A
80A
80A
120A
140A
120A
160A
180A

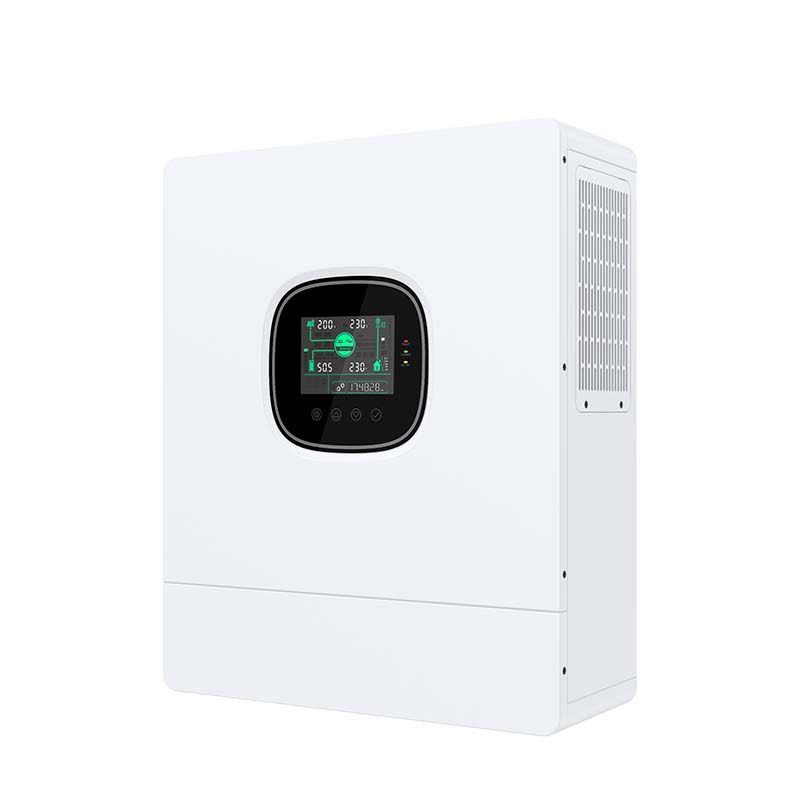

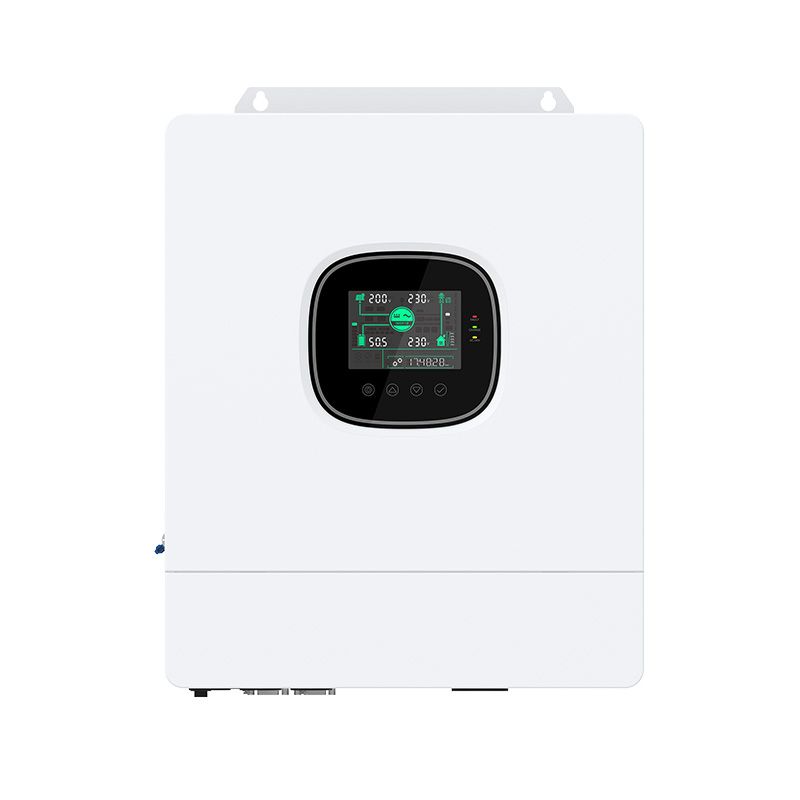

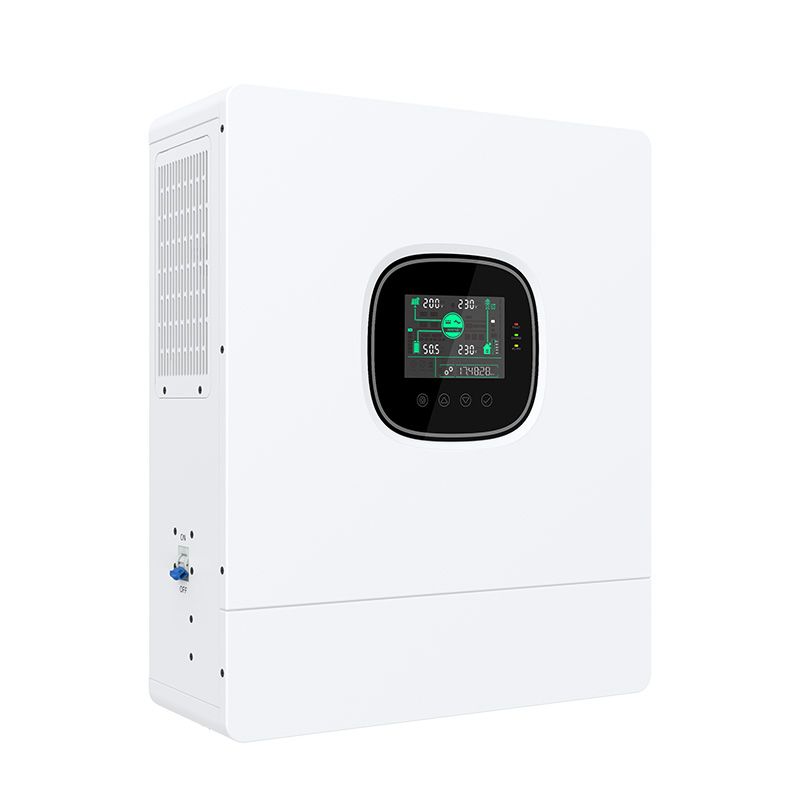

Attractive Design
JC Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and
cables&accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!
Wide Application
JC inverter SP series is widely used in residential and commercial solar energy systems. More than 6000 deep cycles, up to 90% DOD
and phosphate batteries, have won consistent trust.
Integrated Function
With lithium battery BMS-Link communication interface, optional BMS-Link communication protocol conversion modeblock to realize
charge and discharge control based on BMS.
