Solar Power System

Solar power generation systems include solar panels, battery, charge controller, inverter and more, with intelligent battery management, automatic discharge control and comprehensive protection functions.

Home Complete Kit Photovoltaic 5kw 10kw 15kw Household Off-grid Energy Power

Home Complete Kit Photovoltaic 5kw 10kw 15kw Household Off-grid Energy Power

Product characteristics Essential detailsWarranty:20yearsFree installation service:NOPlace of Origin:Anhui, ChinaBrand Name:JCVOLTApplication:Home, Solar Power System HomeSolar Panel Type:Monocrystalline SiliconBattery Type:Lead-Acid, Lithium IonController Type:MPPTMounting Type:Roof MountingLoad Power (W):8KW, 10KWOutput Voltage (V):230Output Frequency:50HZWork Time (h):24Certificate:CE CQC TUVPre-sales project design:YInverter

share to:

Inquiry Now

product introduction
Downloads

Products Description

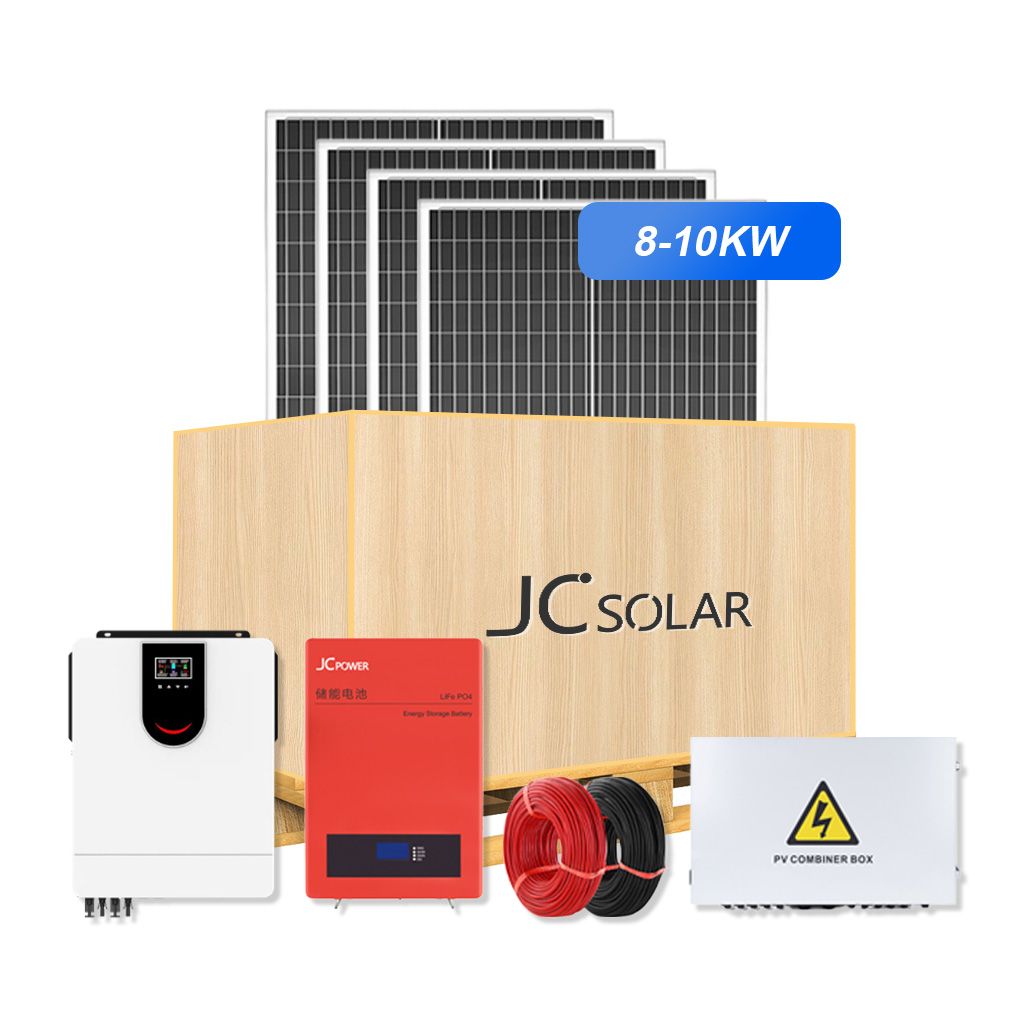

solar energy home power system

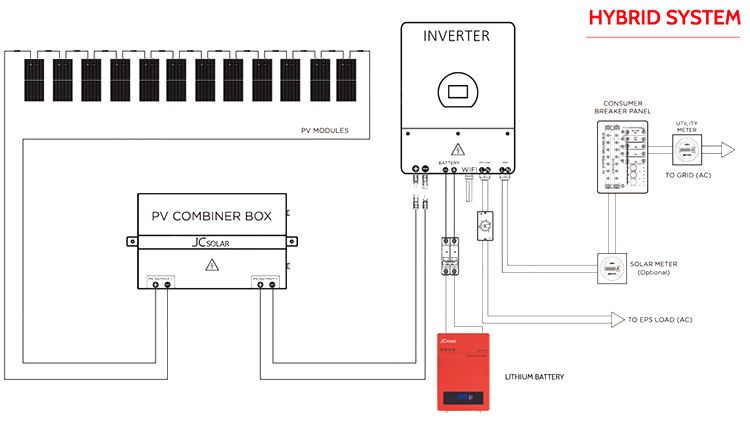

Complete Set Solar Energy System 6kw-10kw Hybrid / Off grid Solar System 3kw 5kw 8KW 10KW Solar Power System for Home

Product Details

Model

JC3KW

JC5KW

JC8KW

JC10KW

SolarPanel（450W）

6PCS

10PCS

16PCS

20PCS

Solar Inverter

3kw

5kw

8kw

10kw

Gel Battery

12V/200AH

PV Combiner

1 set

Pannel Rack

1 set

Cables

1 set

Reminder:

The Above System Configuration For lnitial Desicning, The System Configuration Are Subiect to Changing Depends on Your Final installation Conditions and Requirements

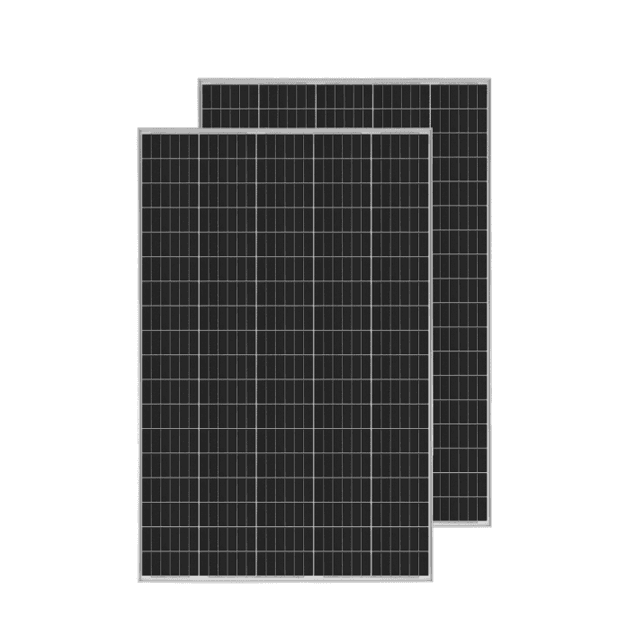

Solar Panel

1.higher efficiency 21-22%
2. USA PERC technology , minimize the
loss of power generation caused by potential for cell cracks
3. can control the expansion of cracks1.higher efficiency 21-22%
2. USA PERC technology , minimize the
loss of power generation caused by potential for cell cracks
3. can control the expansion of cracks

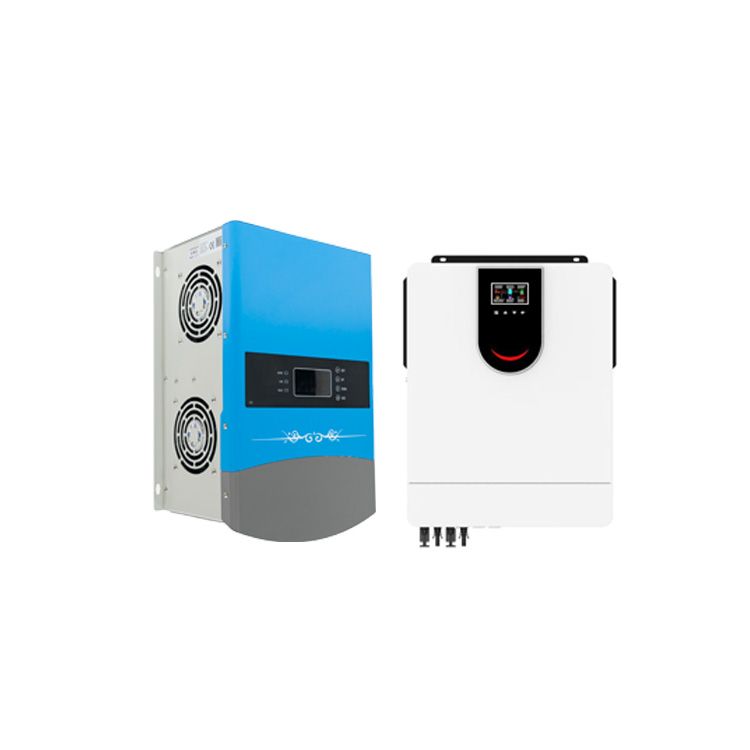

Solar Inverter

> 3 years warranty(solar with IOT)
> With built-in charge controller
> Pure sine wave inverter
> Use copper transformer;
> Bypass function with AC charger;
> Output: 220V 230V 50/60HZ

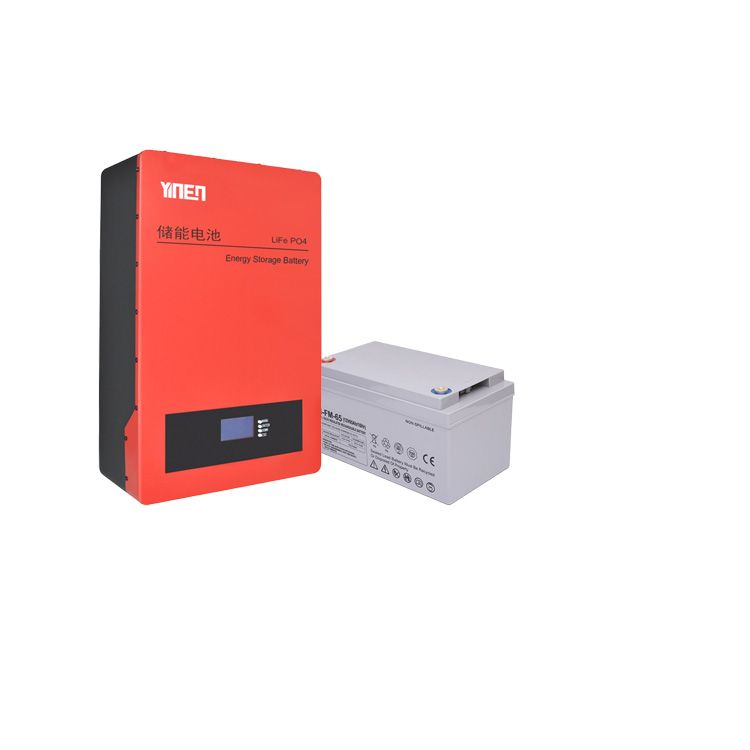

solar Batterysolar Battery

1.Free maintenance, service life 6-8 years
2.DOD 70% cycles 1500 times
3.The latest through-wall welding technology,more suitable for motor loads.

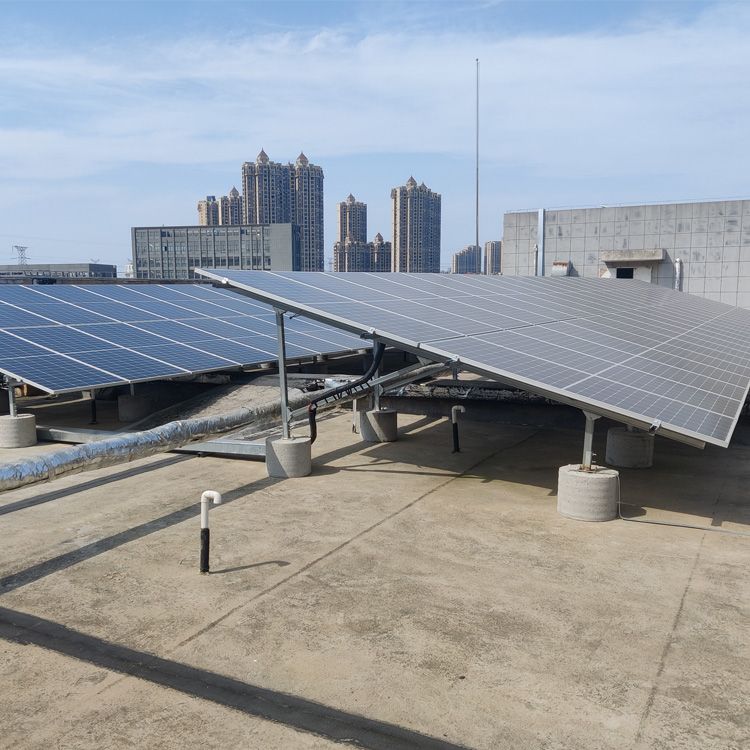

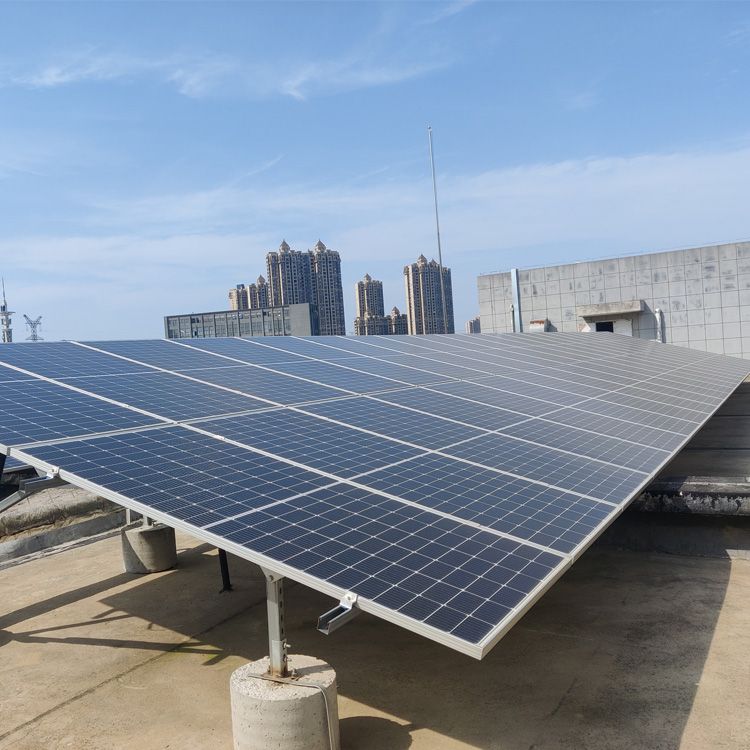

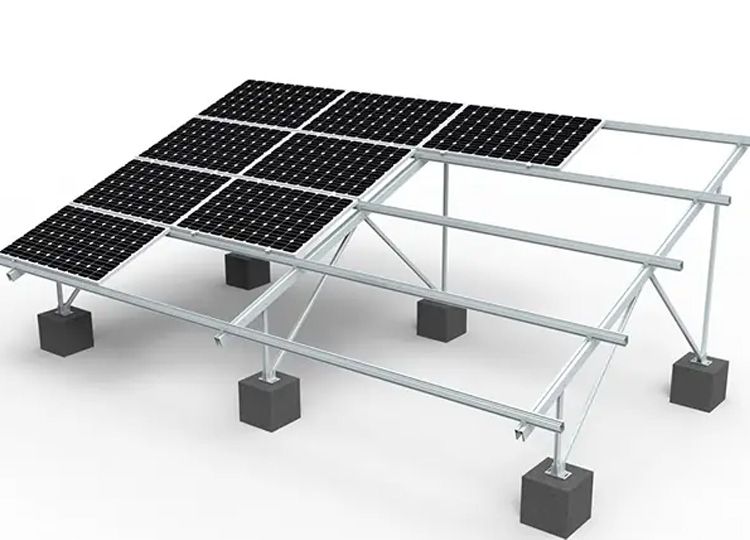

Solar Bracket

1.Slope Roof or Flat roof or Ground (option)2.including complete fittings, 3.Structure:aluminum alloy(Rack can be customized per request)

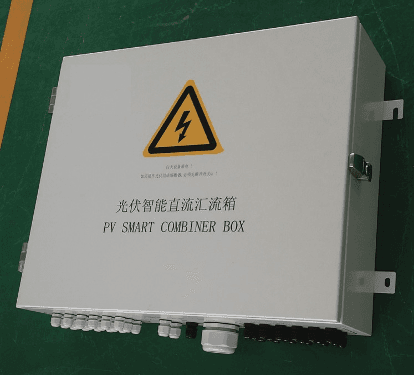

PV Combiner

1.Simplify wiring between PV and controller.
2. Prevent hot spot effect
3.Thunderstorm & surge protection
4.Wide range of DC input voltage

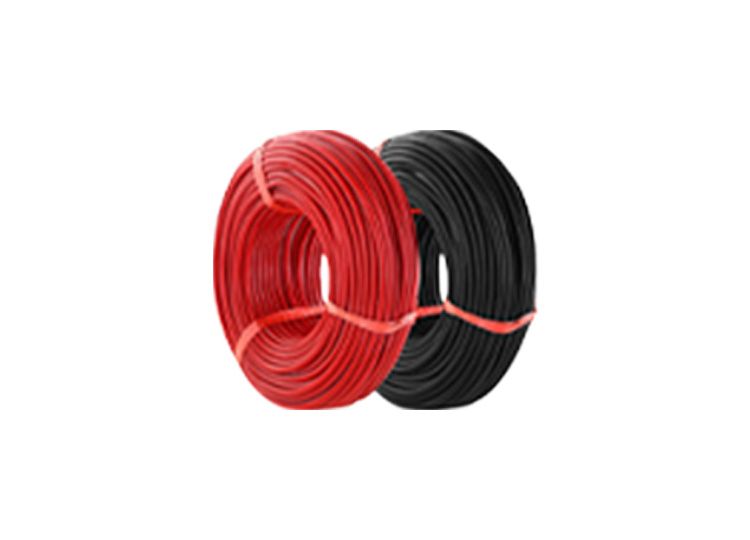

Photovoltaic cable

1.International standard

2.with specification suitable for solar system 3.RVV series 20m x 4mm2 with MC4 Male & Famale Connector

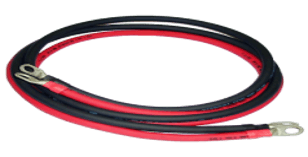

Battery CablesBattery Cables

1.International standard

2. with specification suitable for LiFePo4 battery

3.9 x 40cm x 16mm2, 4 x 80cm x 16mm2, 2 x 3m x 16mm2

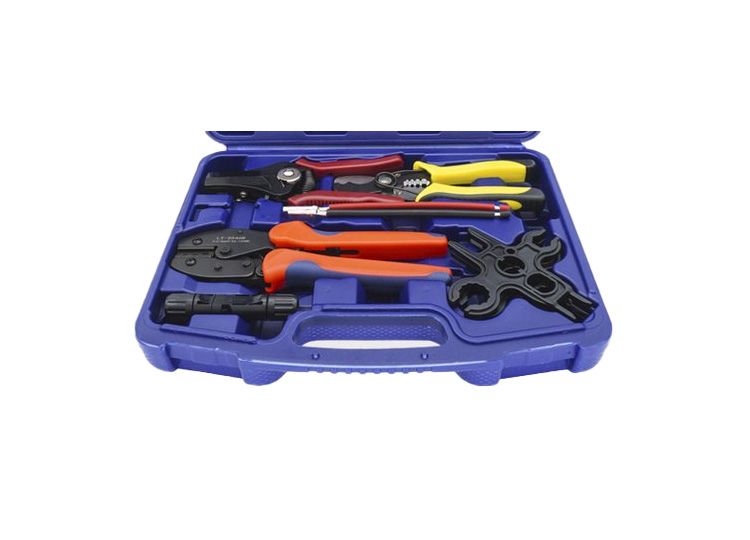

Photovoltaic installation tools

1.Wire Cable Cutter & Stripper

2.MC3 MC4 Crimper

3.MC4 Connectors Assembly

4.Disassembly Tool
